thin titanium plate 0.5mm 1mm 2mm in stock

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Thin Titanium Plate 0.5mm 1mm 2mm in Stock | TA2/Gr2 Cut-to-Size

Meta Description: Thin Titanium Plate 0.5mm / 1mm / 2mm in stock. TA2 (Gr2) ASTM B265, cold-rolled, annealed, cut-to-size, MTC EN 10204 3.1, same-day dispatch from Baoji. Quote within 24h.

Overview

Thin titanium sheet is one of the most requested items from overseas fabricators — but also one of the easiest to get wrong if the supplier has no real stock. We are a Baoji-based titanium inventory holder with 800 tons total titanium stock, including ~400 tons of Titanium Plate, of which thin gauge (0.5mm / 0.8mm / 1mm / 1.5mm / 2mm) is a standing inventory line, not a made-to-order item. This page covers what we actually hold in 0.5 / 1 / 2mm, how we pack and cut thin sheet, tolerance control, typical applications, and how to enquire without wasting a round-trip email.

What "In Stock" Means for Thin Gauge

• 0.5mm TA2/Gr2: cold-rolled, annealed, pickled or bright finish, standard width 1000/1219mm, length 2000mm
• 1.0mm TA2/Gr2: cold-rolled annealed, most active thin-gauge stock, suits PHE blanks and cladding
• 2.0mm TA2/Gr2: cold-rolled or hot-rolled pickled, used for baffle plates, liners, stamped parts
• Stock rotates weekly; we confirm live coil/sheet availability before quotation
• No full-coil forced purchase — we cut from decoiled sheet or stock plate

Thin Plate Stock Snapshot

Note: Total thin-sheet (0.5–2mm) inventory estimated ~45 tons within the 400-ton plate pool. Live count confirmed at enquiry stage.

Technical Parameters (TA2 / Gr2 Thin Sheet)

Why Thin TA2 Sheet (Not Thick Plate) for These Jobs

• Plate heat exchanger cassettes: 0.5–1mm deep-draw stamping, elongation supports corrugation
• Chemical liner / cladding: 1–2mm bonded to carbon steel, no corrosion allowance needed
• Marine & desalination panels: chloride immunity, lightweight wall
• Medical / lab blanks: Gr1/Gr2 thin sheet, biocompatible, easy to laser-cut
• Architecture façade: 1–2mm, anodize-ready, no rust, half the weight of steel
• Electrolysis anode substrate: stable in anodic duty, uniform thickness = even current

Cutting & Slitting for Thin Gauge

Thin sheet is cut on a dedicated titanium line — no carbon-steel mixed fixtures, to avoid iron contamination.

Tolerance & Flatness Control

• Roller leveling before cutting — eliminates coil memory/waviness
• Thickness checked by micrometer at 4 corners + center
• Edge burr deburred (one-sided <0.05mm typical)
• PE protective film optional for stamping clients
• Tighter tolerance (±0.03mm) available on request for 0.5mm bright sheet

Surface Options

Export Packaging for Thin Sheet (Critical)

• Interleaved with PE film + kraft paper between every sheet
• Foam corner guards on cut blanks
• Flat steel frame inside fumigated wooden crate (prevents bend in transit)
• Moisture-barrier bag + desiccant for long-sea shipment
• Edge marking: grade, heat number, thickness, dim, PO ref
• Courier samples: rolled in rigid tube or flat foam sandwich

Quality Before Dispatch

• Thickness micrometer check (4-point + center)
• Flatness gauge (wave <1mm/m after leveling)
• Heat-number ↔ MTC cross-check
• XRF/PMI grade verification on request
• EN 10204 3.1 MTC standard; SGS/BV/TUV third-party at buyer cost
• No substitution without written confirmation

Typical Enquiry Spec (Copy-Paste Ready)

Grade: TA2 / Gr2
Thickness: 0.5mm / 1mm / 2mm
Width × Length: e.g. 1000×2000mm (or strip width)
Qty: ___ sheets / ___ kg / ___ meters (coil)
Surface: pickled / bright / polished
Film: yes/no
Standard: ASTM B265 / GB/T 3621
Docs: MTC 3.1 + COO
Destination: ___

FAQ — Thin Titanium Sheet

Q1: Do you really keep 0.5mm in stock, or is it made-to-order?
A: 0.5mm TA2 cold-rolled annealed sheet is a standing thin-gauge line. Coil slit + leveled + cut. Confirm live meterage before PI.

Q2: Can 0.5mm be waterjet cut without warping?
A: Yes. We clamp on a flat bed with PE film, low-pressure waterjet, no heat-affected zone. Blank stays flat.

Q3: What is the minimum order for thin sheet?
A: No hard MOQ. One blank from offcut is acceptable. Price scales with kg + packing.

Q4: Can you supply coil instead of sheet?

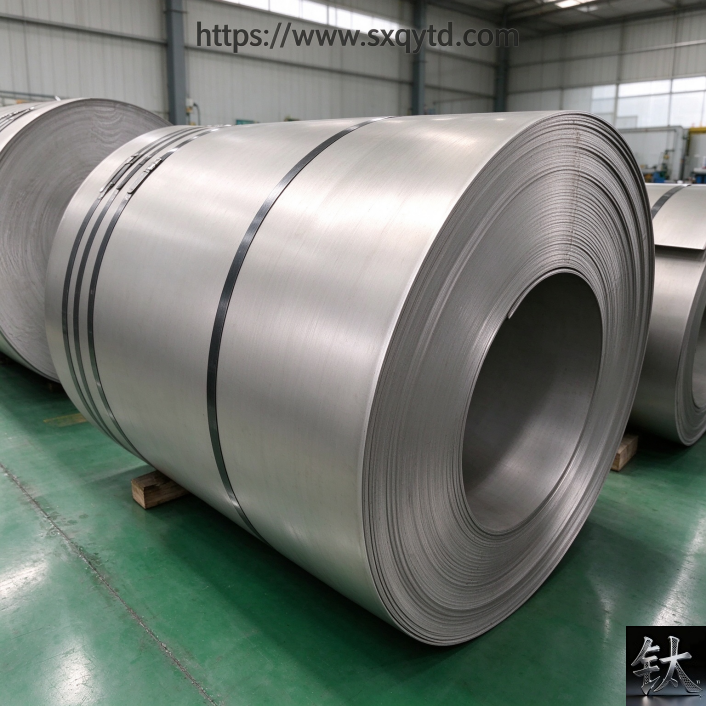

A: Yes — slit coil (0.5/1/2mm) on request, inner Ø505mm / Ø610mm, PE film interleaved.

Q5: Will thin sheet bend in container during sea freight?
A: Not if packed our way — flat steel frame + moisture barrier + foam edges. We have shipped 0.5mm to Middle East/Europe with zero flatness claims using this method.

Q6: Bright vs pickled — which for PHE stamping?
A: Bright annealed (Ra≤0.8) is preferred for deep-draw PHE plates — less die friction, less fouling.

Q7: Can you laser-cut 0.5mm without burn edge?
A: Yes, via argon-assist laser at partner shop. Oxidation-free edge; we note this on the cutting record.

Q8: Is annealed condition default?
A: Yes. All thin TA2 supplied annealed (soft M state) unless customer requests as-rolled.

Q9: How fast is dispatch?
A: Stock sheet cut + packed same day if confirmed before 3 PM China time. Slitting/leveling adds 1 working day.

Q10: Sample coupon available?
A: 100×100mm coupon from same heat, DHL/FedEx at cost, deductible from bulk order.

Request a Quote

Email: sales@[yourdomain].com
Attach or write: thickness + width/length (or strip width) + qty + surface + destination + docs needed.
Reply within 24 working hours with live stock check + EXW/FOB quote.

About: Baoji Titanium Valley inventory holder. ~45 tons thin-sheet pool within 400-ton plate stock (part of 800-ton total titanium inventory). TA2/Gr2 thin plate 0.5 / 1 / 2mm standing stock, cut-to-size, MTC EN 10204 3.1, export crate, same-day dispatch on confirmed in-stock orders.
