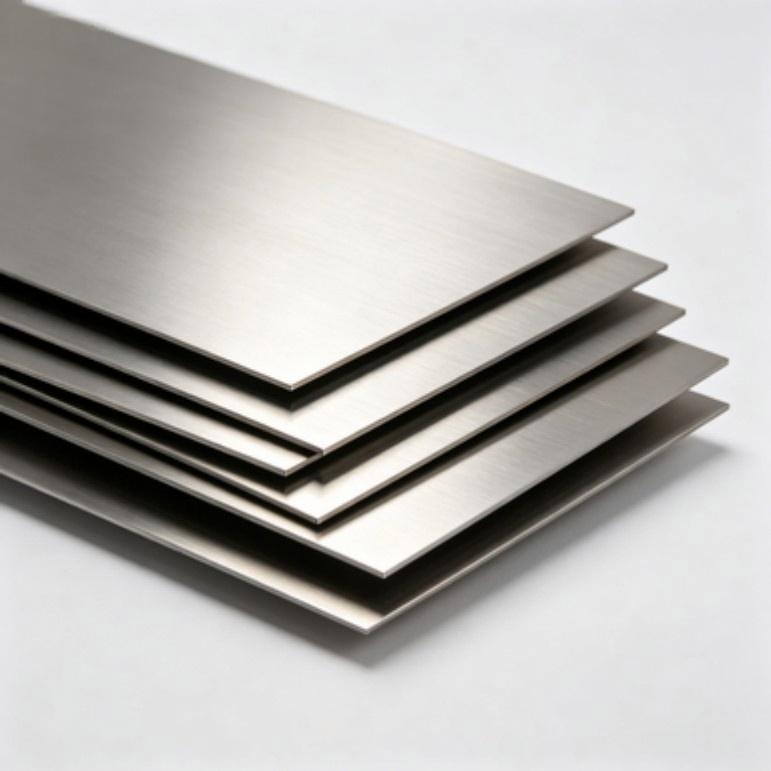

Gr2 Titanium Plate ASTM B265 for Hydrometallurgy & Acid Leaching Tanks

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Overview

We supply Gr2 Titanium Plate complying with ASTM B265 located in Baoji, China Titanium Valley. As a professional titanium inventory supplier with large stock of Titanium Plates, we can interpret hydrometallurgy tank engineering drawings, provide custom cutting service, fully comply with ASTM B265 standards. Full-set export documents and EN10204 3.1 MTC material test certificates are available for each batch, qualified in-stock items support same-day shipment.

Core Specifications

Available Grade	Gr2 Commercially Pure Titanium
Product Type	Titanium Plate / Titanium Sheet
Thickness	1mm‑60mm
Size	Standard plate or cut-to-size per leaching tank fabrication drawings
Surface Condition	Hot rolled, pickled surface; sandblasted surface optional
Applicable Standards	ASTM B265 / ASME SB265
Certificates	ISO9001, EN10204 3.1 MTC, ultrasonic inspection report available

Key Benefits

• Superior corrosion resistance in dilute acid, chloride and heavy metal containing leaching solution
• Stable performance under continuous stirring and fluctuating temperature inside leaching tanks
• Reliable weldability for large area tank lining and reactor assembly on mining site
• Resist pitting corrosion caused by chloride ions in metal extraction process
• Long service life reduces tank maintenance and shutdown frequency for mining plants

Grade Description

Gr2 commercially pure Titanium Plate ASTM B265 is widely adopted in hydrometallurgical metal extraction industry. It can withstand corrosive acid leaching media during copper, cobalt and nickel extraction. Our Titanium Plate is supplied to mining and hydrometallurgy EPC projects in South Africa, Zambia and Peru.

Product Features

Our Gr2 hot rolled titanium plate is pickled to remove surface oxide scales. Every plate is inspected by ultrasonic testing to detect internal delamination defects. This titanium plate is commonly used for lining of acid leaching tanks, precipitation vessels and solution storage tanks in mineral processing plants.

Industry Applications

• Mineral processing: acid leaching tank lining, precipitation reactor, corrosive solution storage vessel
• Copper, nickel, cobalt hydrometallurgy extraction system
• Mining and hydrometallurgy EPC projects in South Africa, Zambia and Peru

Quality Assurance

Every batch undergoes strict inspection before shipment:

• Full dimension tolerance inspection
• Ultrasonic testing (UT)
• Tensile & hardness mechanical property testing
• Chemical composition testing
• Material Test Certificate (MTC) supplied for traceability

Our Service Advantages

• ✅ Spot stock available for fast delivery
• ✅ Custom cutting service, cut‑to‑size according to hydrometallurgy equipment drawings
• ✅ Professional drawing interpretation, support non‑standard dimension processing
• ✅ ISO9001 certified, MTC certificates provided for each shipment
• ✅ Meet ASTM, ASME and GB international standards
• ✅ Global export service, same‑day shipment for in‑stock goods

Packaging & Shipment

Protective film + foam cushion + heavy-duty seaworthy plywood case. Bulk container delivery available for mining EPC contractors. UT inspection reports can be attached for material approval audit.

FAQ

Q: Can you cut Gr2 titanium plate into custom sizes for leaching tank lining?
A: Yes. Our engineering team can read hydrometallurgy tank drawings and cut titanium plate for on-site lining welding.

Q: Why choose ASTM B265 Gr2 titanium plate for acid leaching tanks?
A: Titanium resists chloride and dilute acid corrosion in leaching liquor, outperforming stainless steel for long-term mining service.

Q: Can you provide UT test reports for mining project tender?
A: Yes, EN10204 3.1 MTC and ultrasonic inspection reports can be supplied for EPC tender and material qualification.

If you have technical specifications or project requirements, feel free to send us your inquiry for quotation.
