ASTM B338 Titanium Tubing Cut to Length \| Gr2/Gr9 Seamless & Welded, MTC 3.1

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

ASTM B338 Titanium Tubing Cut to Length | Gr2/Gr9 Seamless & Welded

Meta Description: ASTM B338 titanium tubing cut to length from Baoji stock. Gr2/Gr9 seamless & welded, annealed, 100% eddy current tested, EN 10204 3.1 MTC, custom length with end deburr and cap. Quote within 24h.

Overview

Heat-exchanger bundles don't come in random 6-meter sticks — your tube sheet decides the length, not the mill. We supply ASTM B338 titanium tubing, cut to the exact length your drawing calls for: Gr2 (TA2) as the running stock grade, Gr9 (Ti-3Al-2.5V) for aerospace/hydraulic duty on rotation. Seamless and welded-and-drawn both available. Annealed, NDT-verified, heat-number traceable, end-cut square, deburred, capped.

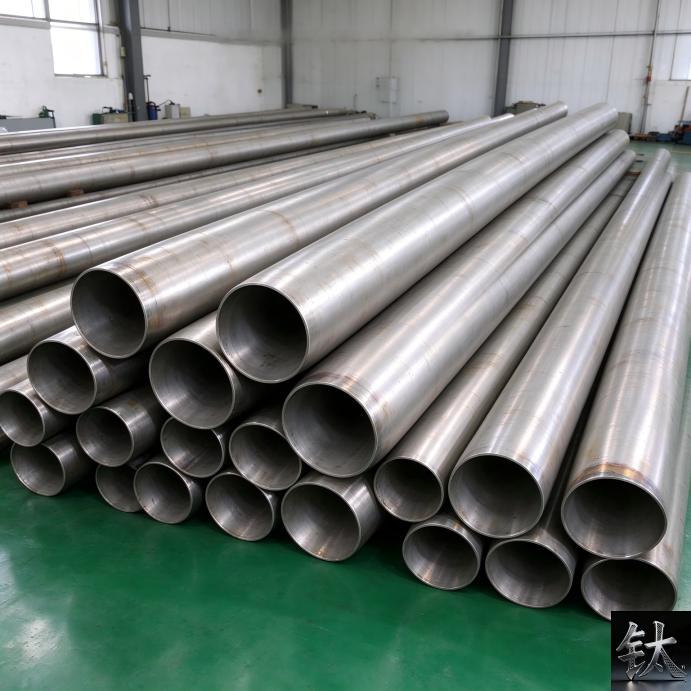

We're a Baoji Titanium Valley inventory holder — tube stock on the shelf, not a 6-week mill queue for standard sizes. Send OD + wall + length + qty; we confirm the heat and cut.

What ASTM B338 Actually Covers

ASTM B338 = Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers. It is the standard behind almost every HX datasheet that names titanium tube.

• Covers Grade 1, 2, 3, 5, 7, 9, 11, 12, 23, 26, 28 etc.
• Two tube types: Type S (seamless) and Type W / WD (welded / welded-and-drawn)
• Defines chemistry, mechanicals, OD/wall/straightness/length tolerances, flattening/flaring/hydrostatic or ET requirements
• ASME equivalence: SB-338 (same material basis, pressure-equipment context)

B338 ≠ B861/B862 (general pipe). If your line is a heat-transfer tube, B338 is the right call.

Stock Scope We Cut From

Live heat confirmed before PI — we don't quote "available" on a size that left the shelf yesterday.

Technical Baseline (Gr2 / TA2, Annealed)

Seamless vs Welded-And-Drawn (Which One to Specify)

Both supplied to B338. We don't push welded where seamless is mandated — PO rules win.

Cut-to-Length Workflow (How We Keep It Clean)

1. Confirm OD + wall + grade + end condition from your RFQ
2. Pull tube from tagged stock (heat number logged)
3. Measure twice, cut on fixed-length bench / rotary cutter
4. Square-end cut, deburr inside + outside
5. Optional: chamfer, flare-ready end, passivation
6. Plastic cap both ends, PE sleeve, bundle tie with heat tag
7. MTC 3.1 drafted against the mother-heat; cut length recorded on dispatch note

End Condition Options

• PE / BE: plain end, square cut (default)
• Chamfered: for roller expansion into tube sheet
• Flare-ready: light deburr, no oxide, for on-site flaring
• U-bend: mandrel bent, wall-thinning controlled, radius per drawing (project lead time)
• Threaded / fitting-end: on request, machined in-house or partner shop

Testing & Certification

• 100% Eddy Current Test (ECT) on welded; seamless per PO NDT matrix
• Hydrostatic / pneumatic test on request
• Flattening + flaring test per B338 sample basis
• EN 10204 Type 3.1 MTC — issued by the original tube mill's independent inspection function, heat-matched
• Chemistry + mechanicals for actual heat; ECT report referenced
• 3.2 (SGS/BV/TÜV) arranged at buyer cost
• Heat number on tag = MTC = bundle label. No swap.

Typical Applications

• Shell-and-tube heat exchangers (chemical / refinery / pharma)
• Power-plant surface condensers (seawater-cooled)
• MSF/MED desalination evaporator tubes
• Chlor-alkali cooling coils, wet chlorine gas lines
• Offshore topside cooling, seawater intake piping
• Aerospace hydraulic / fuel lines (Gr9)
• Lab pilot rigs, spare-bundle short-length replenishment

Small Batch / Spare-Part Cuts

• Short lengths (150mm–2m) accepted — no forced full-stick buy
• Mixed OD/wall in one crate OK
• Spare tube-sheet patch: send old heat number, we match from shelf if live
• Prototype HX: 10–30 tubes cut same day (in-stock gauge, confirmed before 3 PM China time)

Export Packaging for Cut Tubes

• Plastic end caps both sides (standard)
• PE sleeve per tube / bundle
• Paper separator + plywood crate (ISPM-15)
• Steel strap + edge guard for long bundles
• Moisture barrier + desiccant for GCC/Africa long-sea
• Label: grade, OD×WT, length, heat No., PO ref

Enquiry Template (Copy-Paste)

Standard: ASTM B338
Grade: Gr2 / Gr9 / other ___
Type: Seamless (S) / Welded (W/WD)
OD × Wall: ___ mm × ___ mm
Cut length: ___ mm (each) × ___ pcs
End: plain / chamfer / flare-ready / U-bend (radius ___)
Surface: pickled / bright annealed
Test: ECT standard / hydrostatic yes-no / 3.1 or 3.2
Heat number: any in-stock / match previous ___
Port: ___ (FOB Shanghai default)

FAQ — ASTM B338 Tubing Cut to Length

Q1: Can you cut exact lengths, not random 6m sticks?
A: Yes. That's the page topic — cut-to-length from stock, square end, deburred, capped. Length tolerance per B338 cut-length practice (+3~6.4mm / −0).

Q2: Is the MTC still valid after cutting?
A: Yes. Mother-heat number travels with the bundle; MTC 3.1 references that heat. Tag = cert = crate label.

Q3: Seamless or welded — which should I pick?
A: HX thin-wall seawater cooling → welded-and-drawn is cost-efficient; high-pressure / U-bend critical / aero → seamless. PO spec decides; we won't substitute silently.

Q4: Can you do U-bends?
A: Yes, mandrel U-bend per radius drawing. Project lead time quoted after bend radius + wall confirmed (wall-thinning calc provided).

Q5: Minimum order?
A: Stock gauges: short runs accepted, no forced full-stick buy. Cutting setup stated transparently. Non-stock heat → project MOQ per mill.

Q6: ECT report included?
A: Welded tube: 100% ECT by default. Seamless: ECT/hydro per PO NDT matrix. Report ships with MTC.

Q7: Gr9 lead time?
A: Rotating stock checked on enquiry; if heat not on shelf, mill lead time quoted honestly — no fake "always ready".

Q8: Can you match my existing bundle heat?
A: Send old heat No.; we check live shelf. If unavailable, propose equivalent heat with full 3.1 for QA review before cutting.

Q9: Length tolerance tight enough for tube sheet?
A: Standard B338 cut-length tolerance applied; tighter length class quoted case by case (machining-grade).

Q10: Sample before bulk?
A: 1–2 cut pieces from same heat at cost, courier deductible from PO.

Request a Quote

Email: sales@[yourdomain].com

Send OD × wall × cut length × qty + grade. Reply within 24 working hours: live heat, EXW/FOB quote, dispatch date.

About: Baoji Titanium Valley inventory holder. ASTM B338 titanium tubing cut to length — Gr2/TA2 seamless & welded-and-drawn, Gr9 on rotation, annealed, ECT-verified, EN 10204 3.1 heat-traceable, end-capped and export-crated. Stock on the shelf, heat on the tag, length to your drawing.
