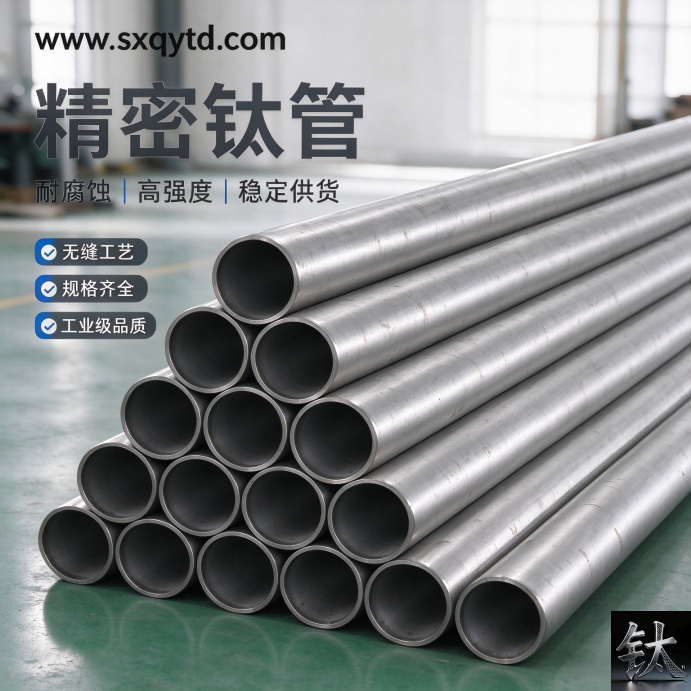

itanium Tube 25mm / 32mm / 50mm OD Stock \| Gr2 ASTM B338/B861, Cut-to-Length

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Titanium Tube 25mm / 32mm / 50mm OD Stock | Gr2 ASTM B338/B861, Cut-to-Length

Meta Description: Titanium tube 25mm / 32mm / 50mm OD in rotating stock from Baoji. Gr2/TA2 ASTM B338 (HX tube) & B861 (pipe), annealed, cut-to-length, ECT/hydro per PO, EN 10204 3.1 heat-traceable. Quote in 24h.

Overview — Three OD Numbers Buyers Actually Search

25mm, 32mm, 50mm OD are the "sweet spot" sizes in shell-and-tube HX, condenser retubing, seawater bypass lines and lab rigs. They're not exotic — they're the sizes where stock readiness + tolerance honesty decides whether your shutdown window holds.

We keep Gr2/TA2 in these three OD bands on rotating stock. 25mm class follows B338 nominal 25.4mm; 32mm is the metric integer OD (near 31.8mm / 1.26"); 50mm class covers 50.8mm nominal and metric 50mm. Heat number confirmed before cut — no "approximate size" bluff.

Metric vs Inch — Read This Before Quoting

B338 OD tolerance (annealed): 25.4mm band ±0.127mm; 38.1–50.8mm band ±0.152mm; wall ±10% nominal. If your tube sheet is drilled to 25.4/31.75/50.8, tell us — we won't silently ship metric 25/32/50 into an inch drill.

Stock Map — Gr2/TA2 (Rotating)

Honest boundary: 50mm SCH 40S seamless and 32mm thin-wall (<0.8mm) run on shorter rotation — confirmed by heat before PI, not "guaranteed on shelf forever".

Tube or Pipe? Pick the Standard First

25/32mm are almost always tube (B338). 50mm can be tube (bundle) or pipe (B861) — PO must say which, or QA kicks it back.

Technical Baseline (Gr2 / TA2, Annealed)

How We Cut & Pack These Three Sizes

• Low-vibration cut → no ovality at ends
• ID/OD deburr → no burr shedding in HX startup
• Both ends capped + PE sleeve
• 25/32mm: bundle in nylon sling, straight-length crate
• 50mm pipe: skid/wood frame, ISPM-15, moisture barrier + desiccant
• Tag = MTC heat No. = crate label (no heat swap)

Which Wall to Pick (No Over-Spec)

Rule: HX heat-transfer → thinner wall wins; pressure transport → B861 SCH class, don't thin-wall a pipe.

Testing & MTC

• EN 10204 3.1 — mill authorized inspection rep, heat-matched
• Chemistry incl. O/N/H/Fe numeric, not "complies"
• 25/32mm tube: ECT 100% (welded) / ECT per PO (seamless)
• 50mm pipe: UT + hydrostatic (1.5× design when PO states)
• 3.2 (SGS/BV/TÜV/DNV) witness at buyer cost, PO-fronted

Typical Applications by Size

• 25mm: condenser retubing, lab HX, chromatograph guard line, sensor sheath
• 32mm: MED evaporator tube, seawater bypass, chemical reactor sample coil
• 50mm: brine header, cooling-water main, SWRO HP feed auxiliary, skid process pipe

Enquiry Template (Copy-Paste)

OD: 25 / 25.4 / 32 / 31.8 / 50 / 50.8 mm ___
Wall: ___ mm  (or SCH ___ if pipe)
Standard: ASTM B338 (tube) / B861 (pipe) ___
Grade: Gr2 / TA2 / Gr9 / Gr7 ___
Length: ___ mm × ___ pcs
End: plain / bevel 37.5° / capped
NDT: ECT / UT / hydro ___ MPa / 3.1 or 3.2
Tube-sheet drill size: ___ mm (so we match fit-up)
Port: ___ (FOB Shanghai default)

FAQ — 25 / 32 / 50mm Titanium Tube Stock

Q1: Is 25mm the same as 25.4mm?
A: Not exactly. B338 nominal is 25.4mm (±0.127). If your drawing says 25mm metric, tell us — we cut to the drill, not the habit.

Q2: 32mm stock — metric or inch?
A: Both handled. Metric 32mm and inch 31.75mm (1.25") are close but not identical; confirm tube-sheet bore before bundling.

Q3: 50mm — tube or pipe?
A: Either. HX bundle = B338 tube; pressure line = B861 seamless pipe SCH 10S/40S. PO must name it.

Q4: What wall for condenser retubing?
A: 25mm→1.2/1.5mm; 32mm→1.5mm; 50mm→1.5mm tube or SCH 10S pipe. Heavier only if velocity/pressure demands.

Q5: Cut length tolerance?
A: Standard B338 cut +3~6.4/−0mm. Machined ±0.1mm on request (micro burr-free, extra op).

Q6: Gr9 in these OD?
A: Heat-by-heat confirm; not on the same rotating shelf as Gr2. Lead quoted honest.

Q7: ECT on all three?
A: Welded B338 = 100% ECT. Seamless = ECT/UT per PO matrix, written in quote.

Q8: Dispatch speed?
A: In-stock gauge + PO before 3 PM China time → same-day cut & dispatch. Sea FOB Shanghai; air for shutdown at buyer cost.

Q9: Mixed sizes in one crate?
A: Yes — 25+32+50 in one shipment, one PI, separate MTC per heat (or combined pack with heat map).

Q10: Sample fit-up piece?
A: 1–2 cut-offs from same heat at courier cost, deductible from PO.

Request a Quote

Email: sales@[yourdomain].com

Send OD (metric or inch) + wall + length + tube/pipe standard. Reply within 24h: live heat, EXW/FOB quote, NDT scope, dispatch date.

About: Baoji Titanium Valley inventory holder. Titanium tube 25 / 32 / 50mm OD class on rotating Gr2/TA2 stock — B338 HX tube + B861 pipe, annealed, cut-to-length, ECT/hydro per PO, EN 10204 3.1 heat-traceable. Metric-or-inch confirmed before cut; tag = cert = crate.
