ASME B16.5 Titanium Weld Neck Flange Class 300
| Specification | Material: Gr2 (TA2) |
|---|---|
| Applicable Standard | Standard: ASME B16.5 |
| Material Condition | Class: 300|Face: RF |
| Inspection & Packaging | Oct Stock: 30000 Pcs |
Product Description: ASME B16.5 Class 300 Titanium Weld Neck Flange RF in Gr2/TA2. Forged + CNC machined for higher pressure corrosive service. Oct flange stock 30,000 pcs, 7-10 days for stock sizes. Quote in 4h: +86 1882
Product Overview
ASME B16.5 Titanium Weld Neck Flange Class 300 | Gr2 TA2 RF | 30000 Pcs StockASME B16.5 Titanium Weld Neck Flange — Class 300 (RF, Gr2 / TA2)
Phone / WeChat: +86 15909236031 | Baoji Titanium Flange Manufacturer · Forged WN Flange · Mass Stock
Includes ASME B16.5 titanium weld neck flanges, slip-on flanges and blind flanges (Class 150 / 300 / 600).
- Material: Gr2 (TA2) / Gr12 (TA10)
- Size: 1/2"–24" (DN15–DN600)
- Stock lead time: 7–10 working days; urgent orders split & prioritized.
What is a Class 300 Titanium Weld Neck Flange?
A weld neck flange (WN) has a long tapered hub butt-welded to the pipe, giving the best fatigue, thermal-cycle and stress-distribution performance of all flange types. Class 300 is a higher-pressure ASME B16.5 designation than Class 150, used for corrosive process lines where pressure, temperature and sealing reliability all matter.
Made from titanium Gr2 (TA2), the flange resists chlorides, seawater, dilute acid and oxidizing media where stainless steel pits or cracks. For severe crevice-corrosion duty, Gr12 (TA10) is offered.
Why Class 300 + Titanium?
| Requirement | Why Class 300 Ti WN works |
|---|---|
| Higher pressure / temperature | Thicker ring, larger hub, stronger bolt pattern than Class 150 |
| Corrosive media | Gr2 passive film resists Cl⁻, H₂SO₄, HCl dilute, brine, seawater |
| High sealing integrity | Long hub reduces weld-root stress; RF face suits spiral-wound / PTFE gaskets |
| Long service life | No rust, no metal-ion contamination, low lifecycle cost |
| Critical process | Hydrometallurgy SX, chlor-alkali, pharma CIP, FGD, seawater RO |
Key Specifications

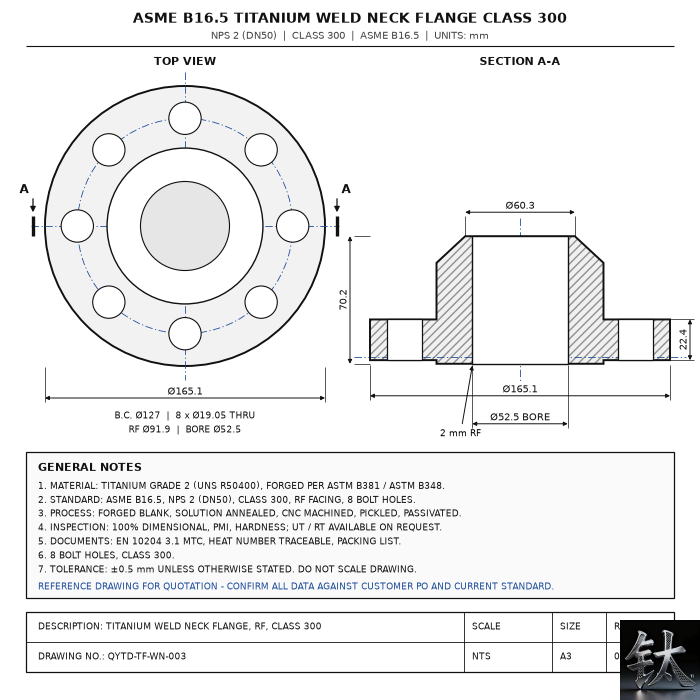

Class 300 Weld Neck Flange — Common Dimensions (ASME B16.5 RF, mm)
| NPS | Flange OD (mm) | Bolt Circle (mm) | Thickness (mm) | Bolts | Hub OD at Base (mm) | Bore (mm) |
|---|---|---|---|---|---|---|
| 1/2" | 95.2 | 66.7 | 14.2 | 4 × M16 | 38.1 | 21.3 |
| 1" | 123.8 | 88.9 | 17.5 | 4 × M16 | 54.0 | 33.4 |
| 2" | 165.1 | 127.0 | 22.4 | 8 × M16 | 84.1 | 60.3 |
| 4" | 254.0 | 200.0 | 31.8 | 8 × M20 | 146.0 | 114.3 |
| 6" | 317.5 | 269.9 | 35.1 | 12 × M20 | 206.0 | 168.3 |
| 8" | 381.0 | 330.2 | 41.1 | 12 × M24 | 260.3 | 219.1 |
| 12" | 520.7 | 450.8 | 50.8 | 16 × M27 | 375.0 | 323.8 |
Dimensions are ASME B16.5 Class 300 reference values; bore must match pipe schedule. Full drilling chart on request.
Manufacturing & Quality Control
- Titanium billet / forging stock → UT check
- Closed-die forging (ASTM B381) → annealing / stress relieving
- CNC machining: hub taper, RF face, bolt holes, bevel end
- Pickling + passivation (restore TiO₂ passive film)
- Dimensional inspection per ASME B16.5
- PT on machined surfaces, UT on forgings
- Bore / schedule verification against pipe spec
- EN 10204 3.1 MTR, heat-number traceability
- Pearl-cotton + plywood case export packing
Applications
| Industry | Class 300 Ti WN flange use |
|---|---|
| Hydrometallurgy | SX-EW solvent extraction, acid leach, electrolyte return lines |
| Chlor-alkali | Chlorine scrubbers, brine circulation, caustic transfer |
| Chemical / fine chemical | Corrosive solvent, catalyst slurry, high-purity reagent lines |
| Seawater / desalination | Intake, RO concentrate, cooling water with chloride |
| Pharma / semiconductor | CIP/SIP, purified water, no metal-ion contamination |
| Environmental | FGD, electroplating wastewater, high-salt effluent |
How to order (Class 300 WN)
| Parameter | Example |
|---|---|
| Standard | ASME B16.5 |
| Type | Weld Neck (WN) |
| Material | Gr2 (TA2) |
| Class | 300 |
| Size | 4" / DN100 |
| Facing | RF |
| Pipe schedule | SCH 40S |
| Quantity | 40 pcs |
Lead Time & Warranty
- Stock flanges: 7–10 days (within 30,000 pcs October flange stock)
- Non-standard Class 300 / large size: 15–30 days
- Flange + pipe + fittings package: 20–35 days
- Warranty: 24 months on material conformity & forging quality
- Documents: MTR 3.1, UT/PT report, dimension inspection sheet
Need Class 300 Titanium Weld Neck Flanges for higher-pressure corrosive lines?
Call / WeChat: +86 15909236031
Email: qy006@sxqytd.com
Send size × class × material × schedule × quantity → firm quote within 4 hours.
Shaanxi Qianyi Tuoda Technology Co., Ltd. — Baoji Titanium Equipment & Fitting Supplier
Tell us your requirement — grade, size and quantity. We reply within 24 hours.
Prefer chat? WhatsApp +86 188 2967 9311 or email sales@sxqytd.com.
