Class 600 ASME B16.5 Titanium Weld Neck Flange

Specification	Material: Gr2 (TA2)
Applicable Standard	Standard: ASME B16.5
Material Condition	Class: 600\|Face: RF
Inspection & Packaging	Oct Stock: 10 Pcs

Product Description: ASME B16.5 Class 600 Titanium Weld Neck Flange RF in Gr2/TA2. Forged + CNC machined for high-pressure corrosive service: reactors, offshore, chlor-alkali, hydrometallurgy. Oct flange stock 30,000 pcs,

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

ASME B16.5 Titanium Weld Neck Flange Class 600 | Gr2 TA2 RF | 30000 Pcs Stock

ASME B16.5 Titanium Weld Neck Flange — Class 600 (RF, Gr2 / TA2)

Phone / WeChat: +86 15909236031 | Baoji Titanium Flange Manufacturer · Forged WN Flange · Mass Stock

October Flange Stock: 30,000 Pcs
Includes ASME B16.5 titanium weld neck, slip-on and blind flanges (Class 150 / 300 / 600).
- Material: Gr2 (TA2) / Gr12 (TA10) / Gr5 (TC4) on request
- Size: 1/2"–24" (DN15–DN600)
- Stock lead time: 7–10 working days; urgent orders split & prioritized.

What is a Class 600 Titanium Weld Neck Flange?

A weld neck flange (WN) uses a long tapered hub butt-welded to the pipe, giving the best fatigue, thermal-cycle and stress-distribution performance of all flange types. Class 600 is a high-pressure ASME B16.5 rating used for reactors, high-pressure acid lines, offshore topsides and critical corrosive process systems.[5](@ref)

Made from titanium Gr2 (TA2), the flange resists chlorides, seawater, wet chlorine, dilute acid and oxidizing media where 316L stainless steel pits, sensitizes or fails. For severe crevice-corrosion duty, Gr12 (TA10) is offered; for high mechanical load, Gr5 (TC4).

Why Class 600 + Titanium?

Requirement	Why Class 600 Ti WN works
High pressure	Thicker ring, heavier hub, larger bolt circle than Class 150/300
Corrosive media	Gr2 passive film resists Cl⁻, seawater, wet Cl₂, dilute H₂SO₄/HCl
High sealing integrity	Long hub reduces weld-root stress; RF face suits PTFE / graphite / spiral-wound gaskets
Thermal / pressure cycling	Tapered neck absorbs expansion, vibration and pump surge
Long service life	No rust, no metal-ion contamination, low lifecycle cost

Key Specifications

Standard: ASME / ANSI B16.5

Type: Weld Neck (WN), Raised Face (RF)

Material: Gr2 (TA2), Gr7, Gr12 (TA10), Gr5 (TC4) on request

Pressure Class: Class 600 (150 / 300 / 900+ available)

Size: 1/2"–24" (DN15–DN600), larger forged to drawing

Facing: RF standard; FF / RTJ optional (RTJ common at Class 600+)

Pipe schedule: SCH 10S / 40S / 80S / 160 / XXS

Forging: ASTM B381 titanium forgings

Machining: CNC turning, drilling, facing per B16.5

RF height: 6.4 mm (Class 300 and above)

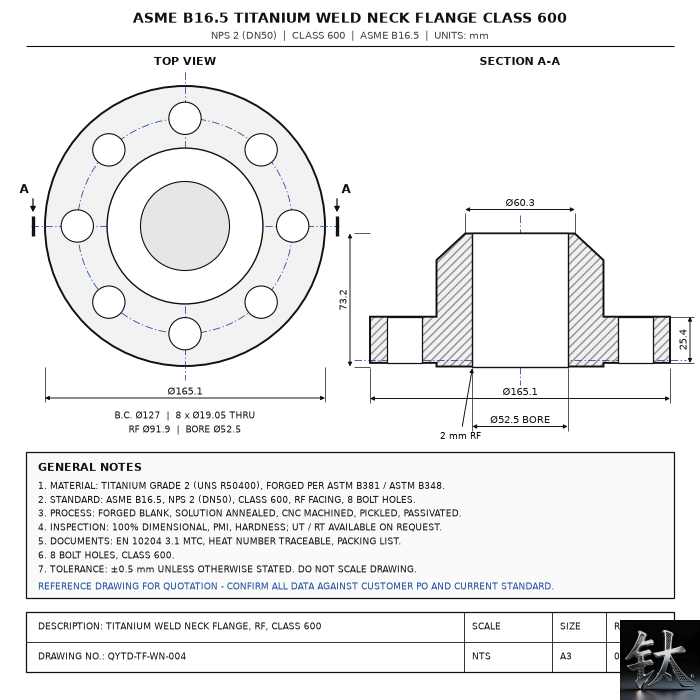

Class 600 Weld Neck Flange — Common Dimensions (ASME B16.5 RF, mm)

NPS	Flange OD	Bolt Circle	Thickness	Bolts	Raised Face Ø	Hub Base Ø	Bore
1/2"	95.3	66.5	14.2	4 × 1/2"	35.1	38.1	21.3
1"	117.3	82.6	15.7	4 × 5/8"	42.9	47.8	26.7
2"	165.1	127.0	25.4	8 × 5/8"	91.9	84.1	60.5
3"	209.6	168.1	31.8	8 × 3/4"	127.0	117.3	88.9
4"	254.0	200.0	31.8	8 × 3/4"	157.2	152.4	114.3
6"	355.6	292.1	47.8	12 × 1"	215.9	222.3	168.4
8"	419.1	349.3	55.6	12 × 1-1/8"	269.7	273.1	219.2
12"	558.8	489.0	66.5	20 × 1-1/4"	381.0	400.1	323.9
24"	939.8	838.2	101.6	24 × 1-7/8"	692.2	717.6	609.6

Reference values per ASME B16.5 Class 600 RF. Bore must match pipe schedule. Full drilling chart and RTJ version on request.

Manufacturing & Quality Control

Titanium billet / forging stock → chemical analysis + UT
Closed-die forging (ASTM B381) → annealing / stress relieving
CNC machining: hub taper, RF face, bolt holes, bevel end per pipe schedule
Pickling + passivation (restore self-healing TiO₂ passive film)
Dimensional inspection per ASME B16.5 (OD, bolt circle, thickness, bore, hub taper)
PT on machined surfaces, UT on forgings
PMI available to confirm Gr2 / Gr12 / Gr5 grade
EN 10204 3.1 MTR, heat-number traceability
Export packing: PE wrap + foam ring on RF face + fumigated plywood case

Applications

Industry	Class 600 Ti WN flange use
Chemical / petrochemical	High-pressure acid reactors, solvent lines, catalyst slurry
Hydrometallurgy	SX-EW high-pressure leach return, electrolyte circuits
Chlor-alkali	Wet chlorine, brine circulation, caustic high-pressure transfer
Offshore / marine	Seawater injection, firewater, produced-water, RO high-pressure reject
Pharma / semiconductor	High-purity CIP/SIP, no metal-ion contamination
Power / desalination	MSF brine heater, high-pressure desalination loops

How to order (Class 600 WN)

Parameter	Example
Standard	ASME B16.5
Type	Weld Neck (WN)
Material	Gr2 (TA2)
Class	600
Size	6" / DN150
Facing	RF (RTJ on request)
Pipe schedule	SCH 80S
Quantity	24 pcs

Lead Time & Warranty

Stock flanges: 7–10 days (within 30,000 pcs October flange stock)
Class 600 non-standard / large size: 15–30 days
Flange + pipe + fittings package: 20–35 days
Warranty: 24 months on material conformity & forging quality
Documents: MTR 3.1, UT/PT report, dimension inspection sheet, CoC

Need Class 600 Titanium Weld Neck Flanges for high-pressure corrosive lines?
Call / WeChat: +86 15909236031
Email: qy006@sxqytd.com
Send size × class × material × schedule × facing × quantity → firm quote within 4 hours.

Shaanxi Qianyi Tuoda Technology Co., Ltd. — Baoji Titanium Equipment & Fitting Supplier

ASME B16.5 Titanium Weld Neck Flange Class 600
