ASME B16.5 Titanium Weld Neck Flange Class 150

Specification	Material: Gr2 (TA2)
Applicable Standard	Standard: ASME B16.5
Material Condition	Class: 150
Inspection & Packaging	Face: RF\|Oct Stock: 30000 Pcs

Product Description: ASME B16.5 Class 150 Titanium Weld Neck Flange RF in Gr2/TA2. Forged + CNC machined, corrosion resistant for chlor-alkali, hydrometallurgy, seawater. Oct flange stock 30,000 pcs, 7-10 days delivery. Q

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

ASME B16.5 Titanium Weld Neck Flange Class 150 | Gr2 TA2 RF | 30000 Pcs Stock

ASME B16.5 Titanium Weld Neck Flange — Class 150 (RF, Gr2 / TA2)

Phone / WeChat: +86 15909236031 | Baoji Titanium Flange Manufacturer · Forged WN Flange · Mass Stock

October Flange Stock: 30,000 Pcs
Includes ASME B16.5 titanium weld neck flanges, slip-on flanges and blind flanges.
- Material: Gr2 (TA2) / Gr12 (TA10)
- Size: 1/2"–24" (DN15–DN600)
- Class: 150 / 300 / 600 available
- Stock lead time: 7–10 working days; urgent orders can be split & prioritized.

What is a Class 150 Titanium Weld Neck Flange?

A Weld Neck Flange (WN) has a long tapered hub that is butt-welded to the pipe. The hub transfers stress gradually from the flange to the pipe, reducing stress concentration at the weld and giving the best fatigue and thermal-cycle performance among all flange types.

Class 150 is the ASME B16.5 low-pressure rating (≈285 psi / 2.0 MPa). When made from titanium Gr2 (TA2), it becomes the preferred connection for corrosive, chloride-containing and high-purity piping where 304/316 stainless steel fails.

Why Titanium Gr2 / TA2?

Grade	Key property	Typical service
Gr2 / TA2	Excellent chloride & dilute-acid resistance, no metal-ion bleed	Seawater, brine, pharma, food, environmental
Gr12 / TA10	Ti-Mo-Ni, strong crevice-corrosion resistance	Hydrometallurgy, solvent extraction, hot chloride
Gr5 / TC4	High strength (895 MPa tensile)	High-load rotating / structural titanium systems

Key Specifications

Standard: ASME / ANSI B16.5

Type: Weld Neck (WN)

Material: Gr1 / Gr2 / Gr5 / Gr7 / Gr12 (TA1/TA2/TA9/TA10)

Pressure Class: Class 150 (also 300 / 600 on request)

Size: 1/2"–24" (DN15–DN600), larger forged to drawing

Facing: RF (Raised Face), FF / RTJ available

Pipe bore: SCH 5S / 10S / 40S / 80S

Temperature: -60 °C to 250 °C

Forging: ASTM B381 titanium forgings

Machining: CNC turning, drilling, facing

Class 150 Weld Neck Flange — Common Dimensions (ASME B16.5 RF)

NPS	Flange OD (mm)	Bolt Circle (mm)	Bolts	Thickness (mm)	Bore (mm)
1/2"	89	60.3	4 × 1/2"	11.2	21.3
1"	108	79.4	4 × 1/2"	14.2	26.7

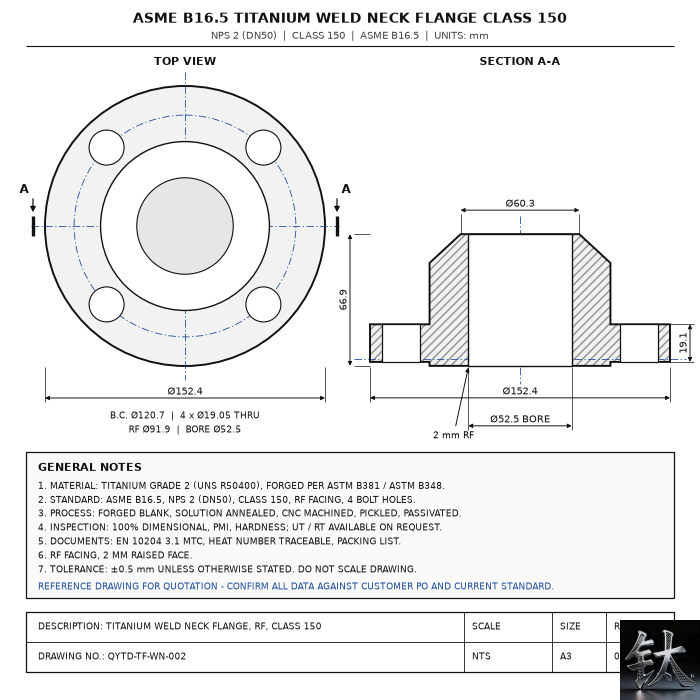

2"	152	120.7	4 × 5/8"	17.5	52.5
4"	229	190.5	8 × 5/8"	22.4	104.1
6"	279	241.3	8 × 3/4"	25.4	156.0
12"	483	381.0	12 × 7/8"	32.0	308.0

Full drilling chart and RTJ version available on request.

Manufacturing & Quality Control

Titanium billet inspection → closed-die forging (ASTM B381)
Annealing / stress relieving
CNC machining: hub taper, raised face, bolt holes, bore
Pickling + passivation (TiO₂ passive film restoration)
Dimensional inspection per ASME B16.5
UT on forgings, PT on machined surfaces
EN 10204 3.1 MTR, heat number traceability
Plywood case + anti-rust protection for export

Applications

Industry	Where Class 150 Ti WN flanges are used
Chlor-alkali	Brine lines, chlorine scrubbers, caustic transfer
Hydrometallurgy	SX-EW solvent extraction, acid leach piping
Seawater / desalination	Intake piping, RO reject, cooling loops
Pharma / food	Purified water, CIP/SIP, fermentation broth
Environmental	Electroplating wastewater, FGD, high-salt effluent

How to order

Parameter	Example
Standard	ASME B16.5
Type	Weld Neck (WN)
Material	Gr2 (TA2)
Class	150
Size	4" / DN100
Facing	RF
Pipe schedule	SCH 40S
Quantity	50 pcs

Lead Time & Warranty

Stock flanges: 7–10 days (within 30,000 pcs October stock)
Non-standard / large size: 15–30 days
Flange + pipe + fittings package: 20–35 days
Warranty: 24 months on material conformity & forging quality
Free replacement for confirmed material/forging defects

Need Class 150 Titanium Weld Neck Flanges for urgent shutdown or new plant?
Call / WeChat: +86 15909236031
Email: qy006@sxqytd.com
Send size × class × material × quantity → firm quote within 4 hours.
