  • High Precision Machined Titanium Plates

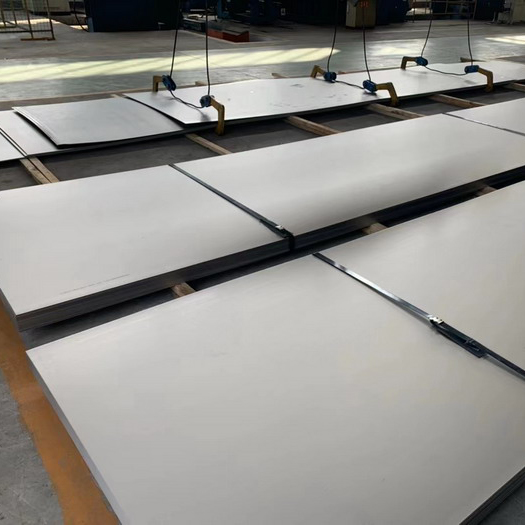

High Precision Machined Titanium Plates

High Precision Machined Titanium Plates

SpecificationMaterial: TA1, TA2 (pure titanium)
Applicable StandardMaterial: TC4, TC11, TA10 (titanium alloy)
Material ConditionExecution standards: GB/T 3621, ASTM B265
Inspection & PackagingSupply status: annealed state, solid solution aging state (alloy version)
Reference Price$11.00 – $14.00

Product Description: Precision machined titanium plates are made of TA2 pure titanium and TC4 titanium alloy plates as substrates. Through processes such as CNC milling, precision grinding, leveling, and polishing, oxide

Request a Quote Contact Sales

Product Overview

Material Performance


1. Mechanics

: TA2 has excellent plasticity and is easy to bend and weld; TC4 has high strength, high specific strength, impact resistance, fatigue resistance, and weighs only 57% of steel.

2. Corrosion resistance

: Equipped with a dense passivation film, it is resistant to seawater, chloride ions, and dilute acids and bases, and has a smooth surface that is not prone to scaling and localized corrosion during precision processing.

3. Physical characteristics

: non-magnetic, good low-temperature toughness, low coefficient of thermal expansion, stable dimensions after precision machining; Medical grade with no harmful precipitation and good biocompatibility.

4. Processing advantages

: Removing the surface hard oxide layer, CNC drilling and tapping tool wear is lower, and the processing yield is higher.

Process Structure


1. Double sided milling peeling and hot rolling oxygen infiltration embrittlement layer, uniform surface and internal structure of the plate, without surface looseness or hidden cracks.
2. Multi pass grinding correction for board warping, high accuracy in parallelism and flatness, tight assembly fit, and excellent sealing effect.
3. Graded precision machining surface, controllable smoothness, suitable for different usage needs such as welding, appearance, high-purity vacuum, etc.
4. The finished product undergoes full inspection for dimensional accuracy and internal defects, and ultrasonic testing is used to detect delamination and porosity, resulting in strong product stability.

Application Fields


1. Semiconductor and vacuum equipment

: high-purity chambers, precision sealed substrates;

2. Aerospace

: Lightweight precision pads, fixtures, small structural components;

3. Medical devices

: orthopedic implant plates, sterile instrument countertops, precision surgical accessories;

4. Deep sea marine equipment

: detection instrument panel, small pressure resistant shell;

5. Automation and Chemical Industry

: Corrosion resistant precision mold pads, small anti-corrosion sealing liners.

Hot rolled <a href=https://www.sxqytd.com/product/titanium-plate.html target='_blank'>Titanium Plate</a> for salt lake lithium extraction

Request a Quote for Titanium, Nickel or Zirconium

Tell us what you need. Send the points below and we reply with live stock status, price and lead time — usually the same day.

Send us these 6 points (or just attach your drawing / old supplier spec)

1 Material grade — Gr2 / Gr5 / Gr7 / Gr12, Ni200 / Ni201 / Monel 400, Zr702…
2 Form — plate / tube / bar / wire / fitting / flange / fastener / equipment
3 Size & tolerance — thickness×width×length / OD×WT / diameter
4 Quantity — kg / pcs / m (small batch and non-standard sizes welcome)
5 Standard — ASTM B265 / B338 / B348, ASME B16.5, EN 1092-1…
6 Application & destination — helps us pick the right grade and certifications

Not sure how to fill this? Send your drawing or an old supplier's specification sheet — we will break it down for you.

Reach us directly

Email: [email protected]

WhatsApp / WeChat:+8618829679311 leave your number on the form

Or use the inquiry form on this page — attach your drawing and we will respond within one business day.

Why buyers come to us

Stock holder in Baoji Titanium Valley with ~800 t inventory · cut-to-size and small batch · drawing-based machining for non-standard parts · we read ASTM / ASME / GB specs · export experience · same-day response on quotes.

Titanium Weight Calculator — Quick Reference

All values use density 4.51 g/cm³ (commercially pure and most Ti alloys). For Gr5 / Ti-6Al-4V (4.43 g/cm³) multiply by 0.982. Figures are theoretical; actual weight varies with tolerance and surface condition.

1. Plate & Sheet — weight per square metre

Formula: kg/m² = thickness(mm) × 4.51

Thickness (mm) 0.5 0.8 1.0 1.5 2.0 3.0 4.0 5.0
kg/m² 2.26 3.61 4.51 6.77 9.02 13.53 18.04 22.55
Thickness (mm) 6.0 8.0 10.0 12.0 15.0 20.0 25.0 30.0
kg/m² 27.06 36.08 45.10 54.12 67.65 90.20 112.75 135.30

Per full sheet: kg = T(mm) × width(mm) × length(mm) × 4.51 ÷ 1,000,000.

2. Round Bar — weight per metre

Formula: kg/m = diameter²(mm) × 0.00354

Diameter (mm) 6 8 10 12 15 20 25 30
kg/m 0.127 0.226 0.354 0.509 0.796 1.415 2.211 3.183
Diameter (mm) 40 50 60 80 100 150 200 —
kg/m 5.659 8.843 12.73 22.64 35.37 79.58 141.48 —

3. Tube / Pipe — weight per metre

Formula: kg/m = (OD − wall)(mm) × wall(mm) × 0.01414

Size (OD × wall, mm) 25.4×1.2 25.4×1.65 25.4×2.0 38×1.5 38×2.0
kg/m 0.411 0.554 0.662 0.775 1.018
Size (OD × wall, mm) 57×2.0 57×3.0 60.3×2.0 89×3.0 114×3.0
kg/m 1.555 2.291 1.647 3.648 4.708

For 114×4.0 mm use 6.222 kg/m. Other walls: apply the formula above.

Need the exact weight for your size?

Send us your grade, dimensions and quantity on our inquiry page — we calculate it free of charge, usually within one business day, and quote against our stock of about 800 tonnes in Baoji Titanium Valley.
