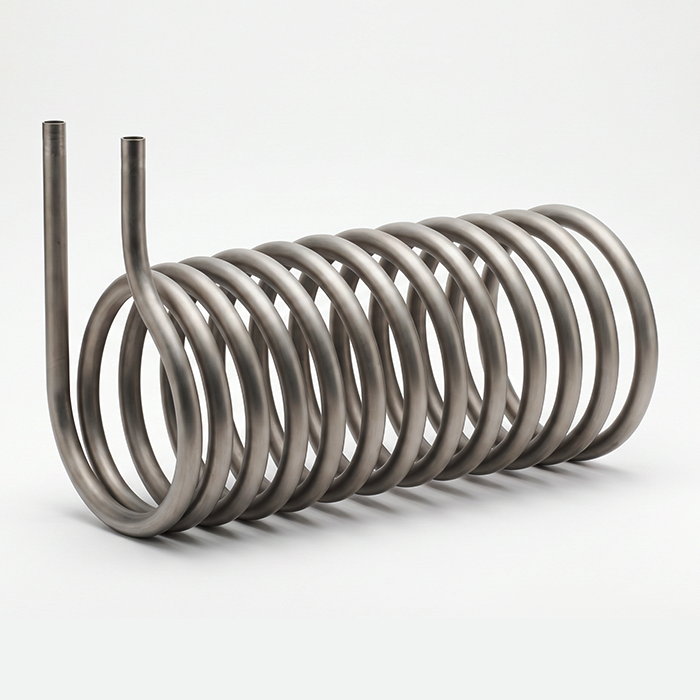

TITANIUM COIL FOR EVAPORATOR - SPECIAL FOR HEAT EXCHANGE

[ Material Performance ]
1. Mechanical property: excellent toughness, tensile strength ≥ 400MPa, anti-vibration, anti-fatigue, not easy to crack and deform under long-term cyclic pressure.
2. Corrosion resistance: resistant to seawater, dilute acid and alkali, saline waste liquid, hypochlorite corrosion, no pitting and crevice corrosion.
3. Comprehensive characteristics: stable heat conduction and high heat exchange efficiency; No magnetism, no metal ion pollution materials separated out; Applicable temperature - 50 ℃ - 200 ℃.

[ Process structure ]

Integral continuous bending molding is adopted to reduce welding joints and avoid leakage hazards from the source; The coil spiral spacing is uniform, which increases the contact area of cold and hot media and improves the heat exchange efficiency; Standard groove design of pipe orifice, compatible with two installation modes of welding and flange; Full pressure leak detection for finished products, uniform thickness of pipe wall, stable structure, suitable for uninterrupted evaporation operation.

[ Application field ]

1. Environmental protection chemical industry: salt-containing waste water evaporator, acid and alkali waste liquid concentration, heat exchange components of brine crystallization equipment;
2. Sea water utilization: sea water desalination, brine salt extraction and marine anti-corrosion evaporation equipment;
3. Electroplating industry: Electroplating cleaning waste liquid recovery and concentration evaporator;
4. Food and medicine: low temperature concentration and heat exchange equipment for liquid medicine and food stock;
5. New energy: supporting coil for evaporation of lithium battery salty wastewater treatment.
