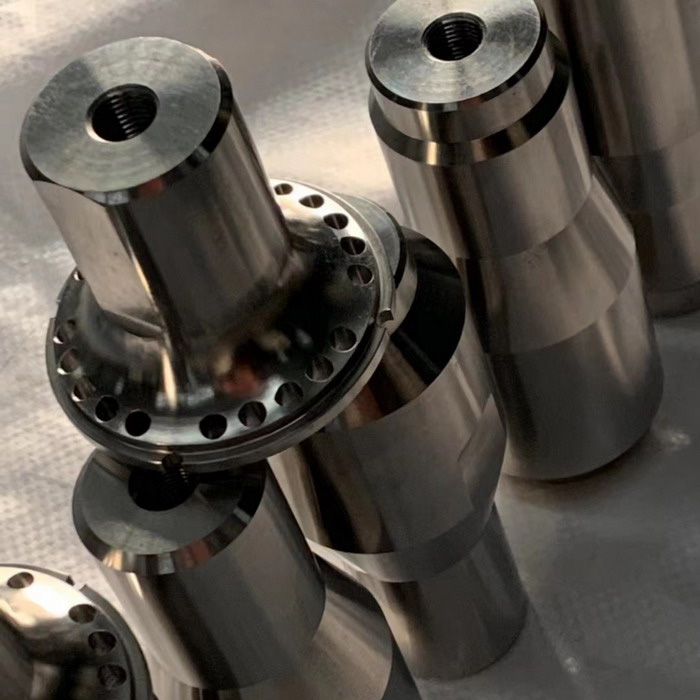

Customized titanium alloy profiled parts

[ Supply status ]
Rough machining of workblank, fine turning and fine milling, mirror polishing, pickling and passivation of various surfaces, without burrs and processing defects.

[ Processing Technology ]

Blanking of titanium rod/titanium plate/titanium forging blank → CNC milling/five-axis machining/forging → drilling, tapping, bending and welding → deburring cleaning → passivation/polishing → dimensional flaw detection.

[ Material Performance ]

TA2 pure titanium surface generates dense passive film, which can resist the corrosion of brine, dilute acid and seawater for a long time, and will not rust and separate impurities; TC4 titanium alloy has high tensile strength, impact resistance and fatigue resistance, and stable performance at high temperature of 400 ℃ for a long time. Low material density, significant weight reduction effect, non-magnetic, non-interference with nuclear magnetic, sensor and vacuum electronic equipment, and biocompatibility of medical grade products.

[ Process structure ]

NC multi-shaft equipment is used to process complex special-shaped curved surface, special-shaped cavity and eccentric porous structure, which is integrally formed to reduce splicing leakage risk; Refined internal grain of forging parts, dense structure and stronger pressure bearing; Special titanium welding process shall be adopted for welding parts, and the corrosion resistance of welding seam shall meet the standard; The finished products are subject to precise dimensional inspection and non-destructive testing to eliminate internal sand holes and microcracks. Mirror surface, matte surface and passivation surface protection can be provided as required.

[ Application field ]

1. Chemical anti-corrosion equipment: special-shaped titanium mixing blade, non-standard titanium cavity, special-shaped pipe joint;
2. Marine and seawater equipment: special supports for marine instruments and special load-bearing members for seawater equipment;
3. Vacuum semiconductor industry: non-magnetic special-shaped cavity, high-temperature vacuum tooling special-shaped parts;
4. Medical devices: medical special-shaped implantation accessories, minimally invasive equipment special-shaped precision structural parts;
5. Aviation and new energy: lightweight high-strength special-shaped connection support, anti-corrosion non-standard tooling.
