Custom Titanium Equipment Guide

Published by Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd on 2026-10-21

Custom Titanium Equipment Guide: Reactors, Heat Exchangers, Columns, Tanks — Built to ASME and Your Drawings

When off-the-shelf components are not enough, custom titanium equipment is the answer. Around 100 sets per year are built in our Baoji fabrication facility—from small autoclaves to 30-ton reactors. This guide explains the scope, standards, documentation and why buying equipment from a material stockholder changes the delivery equation.

Equipment Scope

• Reactors and autoclaves: Jacketed, agitated, heated by electric or thermal oil

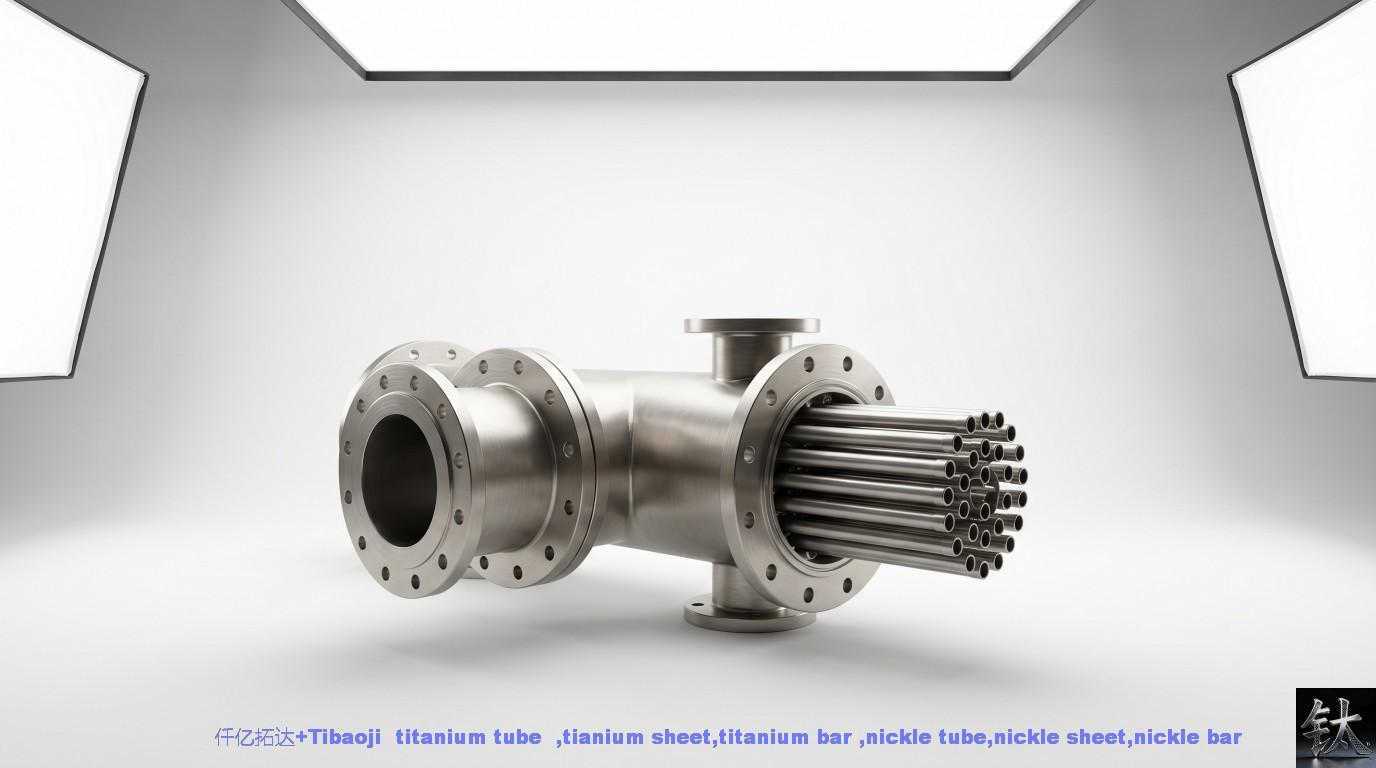

• Shell-and-tube heat exchangers: Fixed tube sheet, U-tube, floating head
• Distillation and absorption columns: Packed or tray columns
• Storage tanks: Atmospheric and pressure rated
• Agitators and stirrers: Shafts, impellers, mechanical seals
• Titanium coils: Heating and cooling coils for existing vessels
• Separators and knock-out drums
• Pipe spools and manifolds: Prefabricated and hydrotested

Materials

• Titanium Gr1, Gr2, Gr7, Gr12
• Nickel alloys (Monel, Inconel, Hastelloy, Incoloy)
• Zirconium on request

Design and Fabrication Standards

• ASME Section VIII Division 1 — Pressure vessels
• GB/T 151 — Shell-and-tube heat exchangers
• NB/T 47003 — Steel welded atmospheric vessels
• Client drawings and specifications

Documentation Package

Every equipment order ships with a complete documentation dossier:

• Design calculation report
• Material certificates (MTC EN 10204 3.1 for all plates, tubes, fittings)
• Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR)
• Welder qualification records
• Non-Destructive Testing (NDT) reports: RT, PT, MT, UT as specified
• Hydrostatic test report
• Dimensional inspection report
• Paint and coating report (if applicable)

Why a Material Stockholder Is the Right Fabricator

Most equipment fabricators buy plate, tube and fittings from third-party mills. When the mill is late, the fabricator is late, and you have no leverage. We are a material supplier first:

• The plate in your vessel wall comes from our own stock
• The tube in your heat exchanger is already in our warehouse
• The flanges and fittings are on our shelves
• Delivery date is not exposed to a third-party mill schedule

Single vessel capacity: up to 30 tons.

How to Start

Upload your drawing or process data sheet. We reply with a technical review and budget price in 2 working days.

Minimum information needed:

1. Process medium, temperature, pressure
2. Material specification (or we recommend)
3. Dimensions and orientation
4. Nozzle list (size, rating, facing)
5. Applicable code (ASME, GB, client standard)

Upload Drawing — Get Technical Review & Budget Price in 2 Days
