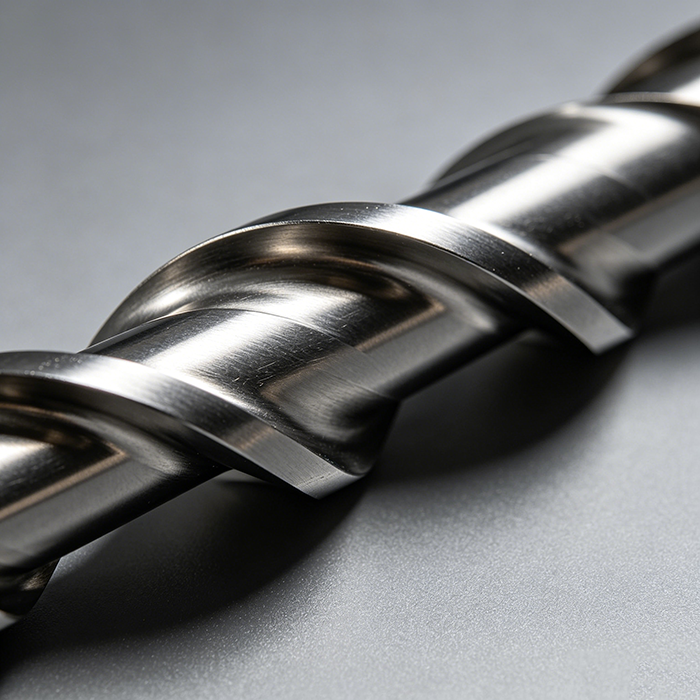

Titanium stirrer blade

[ Supply status ]
Bending and forming, argon arc welding splicing, weld polishing smooth without burrs, overall acid pickling and passivation treatment.

[ Processing Technology ]

NC cutting of titanium plate → bending and shaping → positioning argon arc welding → polishing of welding seam → NDT correction → pickling and passivation of finished products.

[ Material Performance ]

TA2 pure titanium can generate a stable passive film, which can resist the corrosion of hydrochloric acid, sulfuric acid, salt mist and electroplating solution for a long time, without the risk of pitting and perforation; Low density, lighter weight than stainless steel blades, reducing load of mixing motor; No magnetism, no metal ion precipitation for high-purity reagent and electronic chemical production; Stable strength under high-temperature mixing condition, not easy to be scoured and worn by corrosive medium.

[ Process structure ]

The whole piece of titanium plate is bended integrally, with fewer welding points, and the risk of leakage and falling off is low; High-purity argon full welding is adopted for split spliced blade, which is firmly fused and not easy to crack due to high-speed mixing; All edges shall be chamfered and polished, without sharp edges and corners, hanging materials and caking; Pickling, passivating and sealing the surface to strengthen the corrosion resistance; It can reserve mounting holes for locking assembly with titanium spindle bolts, which is convenient for assembly and disassembly.

[ Application field ]

1. Fine chemistry: acid-base corrosion synthesis reactor mixing accessories;
2. Hydrometallurgy and electroplating: high-salt leaching solution and extraction solution stirring blade;
3. Lithium battery new energy: corrosive electrolyte, precursor stirring device;
4. High-purity chemical industry of medicine: clean and free of impurities;
5. Pickling environmental protection equipment: acid and saline-containing waste liquid treatment agitating blade.
